New bootloader file for ATmega8L

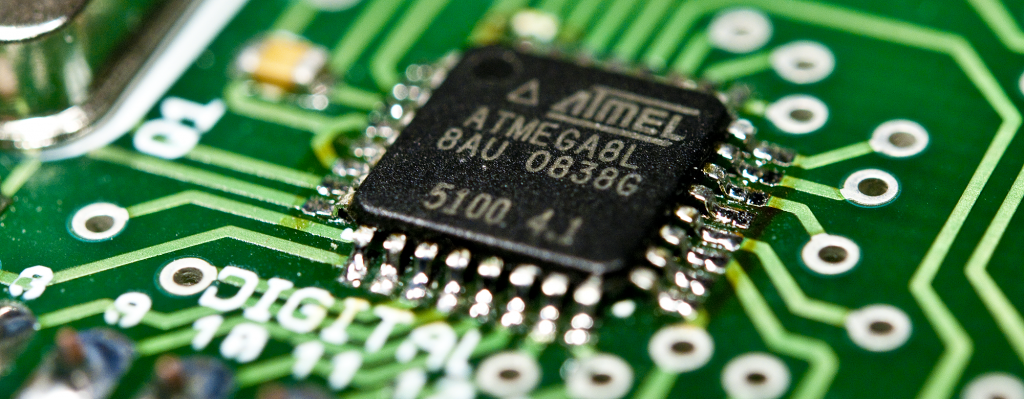

When using the LCD I/O Backpack with the ATmega8L-8AU, you need a bootloader that runs at 8 MHz.

But the one shipping with Arduino for the ATmega8 has some less than ideal settings, most annoyingly a very long startup delay and a low speed for the serial programming.

I have now made a re-compile of the bootloader with these two settings changed (about 1 second startup delay and 19200bps serial speed), which results in faster programming, and a much shorter startup time, both from power-on but also after a soft reset following programming.

All you need, is to download the .hex file and place in in the atmega8 folder under hardware/arduino/bootloaders in the Arduino environment and modify the boards.txt file to include this new bootloader.

On Mac, you have to right-click the Arduino.app and select ‘Show Package Content’ and navigate to Content/Resources/Java/hardware/arduino/bootloaders to find the atmega8 folder.

I have used the following segment in boarts.txt to reference this file in the Arduino environment.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
##############################################################

atmega8l.name=LCD I/O Backpack w/ ATmega8L @ 8MHz

atmega8l.upload.protocol=stk500
atmega8l.upload.maximum_size=7168
atmega8l.upload.speed=19200

atmega8l.bootloader.low_fuses=0xdf
atmega8l.bootloader.high_fuses=0xca
atmega8l.bootloader.path=atmega8
atmega8l.bootloader.file=ATmega8L.hex
atmega8l.bootloader.unlock_bits=0x3F
atmega8l.bootloader.lock_bits=0x0F

atmega8l.build.mcu=atmega8
atmega8l.build.f_cpu=8000000L
atmega8l.build.core=arduino
atmega8l.build.variant=standard

##############################################################

Downloads
Below is just the .hex file, zipped up to avoid corruption. The source is the same as the source that comes with the Arduino environment (in the hardware/atmega8 folder) just adjusted to 8MHz and with a timeout of 1000000)

Tip
If you want to compile your own, you might have to use the AVR-GCC compiler from one of the older Arduino enviromnents (I used Arduino-0010 on Mac), since the newer AVR-GCC complains a bit.

Update for users of Arduino 1.0 and later
Ray has notified me about a problem when using the above instructions with Arduino 1.0. The reason for the error he is getting is a change that the Arduino team has made, which my instructions didn’t take into account. I have updated the text you need to add to the boards.txt (added the last settings line), which tells the compiler what pins settings to use, when compiling for the ATmega8L.

19 thoughts on “New bootloader file for ATmega8L”

  1. pekto says:

    HEY THOMAS! GREAT WORK! i have a question can i use this bootloader that you have made for AVRprog? i am newbee in using bootloader on my atmega8L. and i not that good in C programming but average on assembly language. can you helped me with my project? please…advance thanks mr. thomas!=)

  2. Hi Pekto,

    I don’t think this bootloader will work with AVRprog, as far as can see, it’s meant to be used in a different way, but I must admit, I have never used AVRprog, so I might be mistaking.

    This bootloader is designed to be used with AVRdude (or the Arduino environment) for serial programming and should be programmed into the chip the first time using an AVR ISP (eg. http://store.atmel.com/PartDetail.aspx?q=p:10500054)

    /Thomas

  3. pekto says:

    sir i have a question..i saw this avprog source code .http://sourceforge.net/projects/avrprog2/?source=directory .i dont know how to edit the program..it seems like in c++ programming?? can you guide me on how to edit the baud rate of this software? i am using this bootloader http://www.dl5neg.de/bootloader/bootloader.html, while i am programming it seems like to slow for me.compared to arduino bootloaders..can you help me ? i think you have the ideas..thanks alot! waiting for your reply =)

  4. Ray says:

    Hi, Thomas with these board.txt settings with latest arduino v1.00, when i tried to compile a blink sketch i got the following error

    \arduino-1.0-windows\arduino-1.0\hardware\arduino\cores\arduino/Arduino.h:213:26: error: pins_arduino.h: No such file or directory

    I am trying to use the atmega8l chips available at my place.

    Can i compile the sketch for the board (which seems to be fine) Arduino NG or older /w atmega 8 and burn the HEX file on the atmega8l chip?

  5. Hi Ray and thanks for letting me know about this issue.

    I’m sorry I haven’t had time to look into it until now, but I have updated the instructions above (it’s just one additional line in the boards.txt file) to include the needed changes.

    If you still have trouble compiling, feel free to drop me a line!

    /Thomas

  6. Abishai says:

    Can any1 help me in selecting board for Atmega8-L micro controller…………

  7. What is it you want to accomplish? All you need to get the ATmega8L up and running is power a few caps and maybe a crystal. I have used them with the LCD I/O Backpack that I designed. The board layout is available for download if you want to make your own.

    /Thomas

  8. John says:

    Hi, thanks for your work on the ATMEGA8L bootloader. I have a piece of hardware containing the ATMEGA8L and although I can load code with a programmer I can’t seem to get a bootloader working. With your bootloader burned but with my own fuses settings:
    atmega8L.bootloader.low_fuses=0xe4
    atmega8L.bootloader.high_fuses=0xca

    I see the following:
    avrdude: Version 5.11, compiled on Sep 2 2011 at 19:38:36
    Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/
    Copyright (c) 2007-2009 Joerg Wunsch

    System wide configuration file is “C:\Users\John\Documents\arduino\hardware/tools/avr/etc/avrdude.conf”

    Using Port : \\.\COM14
    Using Programmer : stk500v1
    Overriding Baud Rate : 19200
    avrdude: Send: 0 [30] [20]
    avrdude: Send: 0 [30] [20]
    avrdude: Send: 0 [30] [20]
    avrdude: Recv: . [14]
    avrdude: Recv: . [10]
    AVR Part : ATMEGA8
    Chip Erase delay : 10000 us
    PAGEL : PD7
    BS2 : PC2
    RESET disposition : dedicated
    RETRY pulse : SCK
    serial program mode : yes
    parallel program mode : yes
    Timeout : 200
    StabDelay : 100
    CmdexeDelay : 25
    SyncLoops : 32
    ByteDelay : 0
    PollIndex : 3
    PollValue : 0x53
    Memory Detail :

    Block Poll Page Polled
    Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
    ———– —- —– —– —- —— —— —- —— —– —– ———
    eeprom 4 20 128 0 no 512 4 0 9000 9000 0xff 0xff
    Block Poll Page Polled
    Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
    ———– —- —– —– —- —— —— —- —— —– —– ———
    flash 33 10 64 0 yes 8192 64 128 4500 4500 0xff 0x00
    Block Poll Page Polled
    Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
    ———– —- —– —– —- —— —— —- —— —– —– ———
    lfuse 0 0 0 0 no 1 0 0 2000 2000 0x00 0x00
    Block Poll Page Polled
    Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
    ———– —- —– —– —- —— —— —- —— —– —– ———
    hfuse 0 0 0 0 no 1 0 0 2000 2000 0x00 0x00
    Block Poll Page Polled
    Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
    ———– —- —– —– —- —— —— —- —— —– —– ———
    lock 0 0 0 0 no 1 0 0 2000 2000 0x00 0x00
    Block Poll Page Polled
    Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
    ———– —- —– —– —- —— —— —- —— —– —– ———
    calibration 0 0 0 0 no 4 0 0 0 0 0x00 0x00
    Block Poll Page Polled
    Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack
    ———– —- —– —– —- —— —— —- —— —– —– ———
    signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00

    Programmer Type : STK500
    Description : Atmel STK500 Version 1.x firmware
    avrdude: Send: A [41] . [80] [20]
    avrdude: Recv:

    avrdude: stk500_getparm(): (a) protocol error, expect=0x14, resp=0x41
    avrdude: Send: A [41] . [81] [20]
    avrdude: Recv: . [14]
    avrdude: Recv: . [01]
    avrdude: Recv: . [10]
    avrdude: Send: A [41] . [82] [20]
    avrdude: Recv: . [14]
    avrdude: Recv: . [12]
    avrdude: Recv: . [10]
    avrdude: Send: A [41] . [98] [20]
    avrdude: Recv: . [14]
    avrdude: Recv: . [00]
    avrdude: Recv: . [10]
    Hardware Version: 1992068309
    Firmware Version: 1.18
    Topcard : Unknown
    avrdude: Send: A [41] . [84] [20]
    avrdude: Recv: . [14]
    avrdude: Recv: . [00]
    avrdude: Recv: . [10]
    avrdude: Send: A [41] . [85] [20]
    avrdude: Recv:

    avrdude: stk500_getparm(): (a) protocol error, expect=0x14, resp=0x41
    avrdude: Send: A [41] . [86] [20]
    avrdude: Recv: . [14]
    avrdude: Recv: . [00]
    avrdude: Recv: . [10]
    avrdude: Send: A [41] . [87] [20]
    avrdude: Recv:

    avrdude: stk500_getparm(): (a) protocol error, expect=0x14, resp=0x41
    avrdude: Send: A [41] . [89] [20]
    avrdude: Recv: . [14]
    avrdude: Recv: . [00]
    avrdude: Recv: . [10]
    Vtarget : 0.0 V
    Varef : 357755337.3 V
    Oscillator : Off
    SCK period : 0.1 us

    avrdude: Send: A [41] . [81] [20]
    avrdude: Recv:

    avrdude: stk500_getparm(): (a) protocol error, expect=0x14, resp=0x41
    avrdude: Send: A [41] . [82] [20]
    avrdude: Recv:

    avrdude: stk500_getparm(): (a) protocol error, expect=0x14, resp=0x41
    avrdude: Send: B [42] p [70] . [00] . [00] . [01] . [01] . [01] . [01] . [02] . [ff] . [00] . [ff] . [ff] . [00] @ [40] . [02] . [00] . [00] . [00] [20] . [00] [20]
    avrdude: Recv:
    avrdude: stk500_initialize(): (a) protocol error, expect=0x14, resp=0x42
    avrdude: initialization failed, rc=-1
    Double check connections and try again, or use -F to override
    this check.

    avrdude: Send: Q [51] [20]
    avrdude: Recv: . [14]
    avrdude: Recv: . [10]

    avrdude done. Thank you.
    ————

    I have some concerns over my reset line but have a cap & diode installed as I have seen posted elsewhere. Do you have any thoughts on my problem?

    Regards, John.

  9. Norwegian Shrubbery says:

    Hei, could you provide the source/makefile as well? I’d like to see what you changed so I can understand a bit more..

    Thanks

  10. Wesley Wortman says:

    Well, I tried you procedure but I’m getting

    Binary sketch size: 832 bytes (of a 7168 byte maximum)
    avrdude: Yikes! Invalid device signature.
    Double check connections and try again, or use -F to override
    this check.

    I want to reprogram one of these Jy 3208 clock boards from Deal Extreme

    LINK: http://www.dealextreme.com/p/jy-mcu-3208-lattice-clock-ht1632c-driver-with-mcu-support-secondary-development-104306

    so I just bought a ATMEGA8L from digikey to experiment with. So far I haven’t even gotten the blink sample program to work on it. .

  11. @Wesley Wortman
    When programming the chips using a programmer like the AVRISPmkII or similar, I had trouble getting it to work without having a crystal or other frequency generator connected. I believe it should be possible to use these chips without a crystal (only the internal oscillator) but my attempts was unsuccessful.

    I have ordered one of the boards you mentioned, and will give it a try when I get it in (will probably take some weeks). The boards look pretty nice and could be fun for various projects.

    @Norwegian Shrubbery
    I’ll try to see if I can find them… I have changed machine a few times since, and I’m not sure everything got moved over ;-) If I can’t find it, I’ll try to recreate.

  12. vick says:

    Can this bootloader be used for atmega8A chip ? So if I burn this bootloader I do not need to use external crystal ?

    Thanks

  13. Hi Vick,

    This bootloader should also work on the ATmega8A, worst case is that you will need to recompile it, but I don’t even think that is necessary. Selecting the clock is actually not part of the boot loader, but the fuses set during programming. There are various online tools to help you find the right fuse bits to use if you want to change these, just be careful, there are also fuse bits that lock the firmware.

  14. cba bhusal says:

    Hey thomas,
    one simple question..
    with this bootloader, is atmega8L supposed to run with internal 8Mhz xtal ?

  15. Hi,

    If I remember correctly, this is made to use an external crystal, but changing the fuses is probably all it takes to use the internal oscillator instead, though I haven’t gotten it to work correctly.

    Hope it helps.

    /Thomas

  16. Rishabh Gupta says:

    sir , i have atmega8L microcontroller and i want to burn arduino bootloader ,,can i burn your bootloader on this microcontroller by using arduino uno (arduino as isp),,i am new to bootlading microcontroller plz help or suggest me which cystal i have to use (16mhz or 8mhz)

  17. Hi Rishabh,

    You should be able to use an Arduino as ISP to burn the bootloader onto an ATmega8L.

    If you are using the bootloader I have here on the site, you will need to use an 8 MHz crystal.

    The ATmega8L chip is a special low power and low speed version, so that can’t be used with a 16 MHz crystal.

    /Thomas

  18. Suvodeep says:

    I have recently bought a digital rms wattmeter consisting an ATMEGA8L-8PU IC which is already programmed and working fine in digital RMS wattmeter. I bought another ATMEGA8L-8PU IC and just tried to copy the data from previous IC to the newly bought IC.
    I am using Minipro universal EEPROM programmer version 6. After reading and writing the program in new IC, when i replace the original IC with the newly programmed one…..it is not working properly.
    I am new in programming ATMEGA8L-8PU and i dont understand why the same program in two identical ICs are not working identically. I guess there is code protection associated with this IC. If it is code protected, is there any way to read original code.
    Am I missing any step or do I need any other software or programming kit for this.

    Please help.
    Thanks.

  19. Hi Suvodeep,

    I haven’t tried doing a clone in that way, so unfortunately I’m unable to give any help in that area, but one thing you might have missed are the fuse settings in the AVR chip. Those are used to configure things like clock frequency, brown-out detection, etc.

    I hope this might help you in the right direction!

    /Thomas
